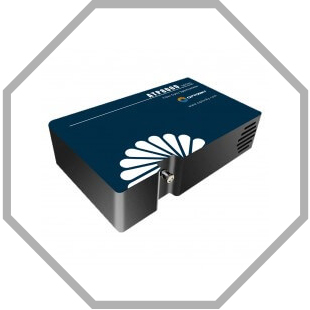

ATP 8000
The ATP 8000 has been designed for the 900 nm to 2600 nm wavelength range. The InGaAs detector is thermo-electric (TE) cooled for low noise and high signal-to-noise (SNR) operation. A range of configurations is available to meet the requirements in IR sensing and analysis applications, such as waste water monitoring or food sorting.
Features and Benefits
- Spectral range 900 – 2600 nm
- TE-cooled InGaAs array detector with 256 or 512 pixel
- Low noise, dual-sampling PCB
- Resolution 5 – 50 nm (depending on spectral range and slit size)
- Fiber-coupled or free-space input
- USB or UART data output
- Including software and SDK
Data Sheet:

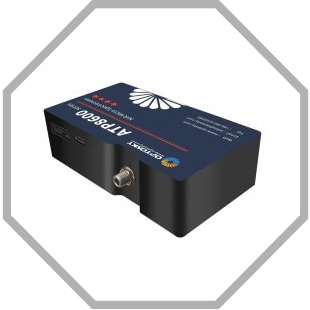

ATP 8600
The ATP 8600 is a compact mini fiber-optic IR spectroemter for the 900 nm to 1700 nm range. The InGaAs CCD detector does not require any cooling. This allows for USB power supply e. g. from a mobile PC. This independence and the compact size is excellent for in-field use. The resolution of the ATP 8600 can be tailored to the requirements of a wide range of applications.
Features and Benefits
- InGaAs CCD detector without cooling
- Power supply via standard USB or external 5V DC
- Compact footprint 102 mm x 57.5 mm x 29 mm
- Spectral range 900 – 1700 nm
- Resolution 4 – 20 nm (depending on slit size)
- Fiber-coupled or free-space input
- USB or UART data output
- Including software and SDK
Data Sheet:

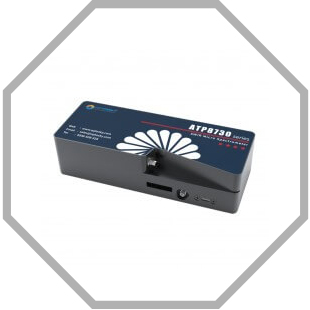

ATP 8730
The ATP 8730 is a high resolution IR spectrometer. It utilizes a TE-cooled 1024 pixel CCD detetctor to address the spectral range from 900 nm to 1700 nm with low noise. Depending on the spectral range and the slit size, a IR resolution of down to 0.03 nm can be achhieved. The high speed electronics allow for a frame rate of 30 kHz and a ADC smapling rate of 10 MHz.
Features and Benefits
- TE-cooled InGaAs CCD detector with low noise
- Spectral range 900 – 1700 nm
- Minimum resolution 0.03 nm (depending on spectral range and slit size)
- Ultra-high 30 kHz frame rate
- Fiber-coupled or free-space input
- USB or UART data output
- Including software and SDK
Data Sheet:
The ATP 8000 Spectrometer Series is covering the infrared (IR) and Mid-IR spectral range up to 2600 nm. The devices are utilizing InGaAs detectors for high performance and low noise. The compact size and fiber-coupled input ensure easy usability. The ATP 8000 Series spectrometers are ideal for a wide range of IR applications, such as moisture content analysis in food sorting or waste water analysis.
The ATP 8000 series can be customized for a wide range of applications. Please do not hesitate to contact us if you have any questions or if you like to have more information!
