ATP 6000 Series – Scientific Grade Spectrometer

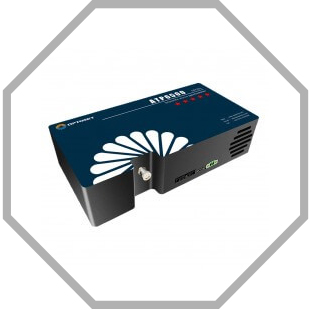

ATP 6500

The ATP 6000 Spectrometer series has been tailored for scientific research applications. The ATP 6500 spectrometer is a high-resolution, high-sensitivity scientific grade device. The back-thinned CCD is offering 1044 pixel with a high dynamic range. The -20°C working temperature is achieved by a thermo-electric (TE) cooler and ensures a greatly reduced dark current. As a result the low noise level and the signal-to-noise ratio (SNR) is out-performing other devices. The ATP 6500 is offering high resolution, high sensitivity and low stray light vulnerability and is perfectly suited for a wide variety of weak light applications such as fluorescence and Raman analysis. The detection range is available in several pre-defined configurations or can be customized.

Features ans Benefits
Back-thinned, TE cooled CCD with 1044 x 64 pixel
Widest dynamik range
Low noise, reduced dark current
Quantum efficiency >90%
Spectral range 180 – 1100 nm
Resolution 0.01 – 4 nm (depending on spectral range and slit size)
Fiber-coupled or free-space input
USB or UART data output
Including software and SDK

Data Sheet:



The ATP 6500 spectrometer can be customized for a wide range of applications. Please do not hesitate to contact us if you have any questions or if you like to have more information!



Optosky, based in Xiamen, China, has been developing a broad variety of spectrometers and related products for more than 20 years. Optosky offers innovative and market-driven solutions for a wide range of spectroscopic applications with a service concept focused on the customer’s requirements. Optosky has a broad installed base in many branches of industry and research.
